· Scan in 1 second

· Data processing time: <9 seconds (creation avatar, extraction measurements saving files)


· No-touch measurement or no-contact measurement

· 1000’s of different Measurements

· Best-in-class Accuracy
​

· Point to Point Measurement




Sizestream, Telemat, Styku

Interested in this please contact us by clicking here.

· Virtual fashion

· Made to measure clothing

· Sizing surveys

· Body shape analysis

· Health/medical and fitness

· 3D printing

· 3D product development


Uses of 3D scanning technology include

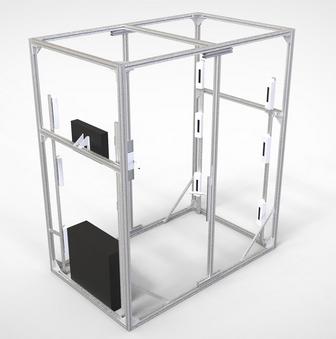

TC2-19M: The New Era of
3D Body Scanning is Here

Specifications

Features:

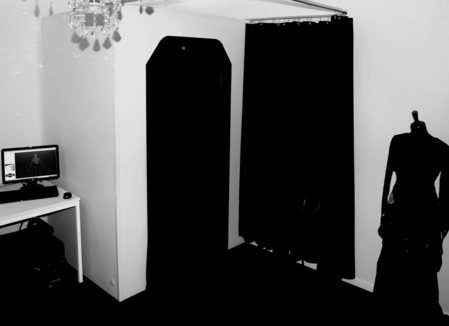

· Changing area (with curtain)

· Full privacy scanning booth

· Recorded audio instructions
  played through speakers in booth)

· 2  height-adjustable handholds

· Compact scanner footprint

· No moving parts

· Scan in any color of close fitting garment

· 4D mode to visualize 3D movement

· Selectable hair-masking mode
  (Scanning software can automatically mask subject’s hair and part of the head so measurement
  extraction is unaffected by hairstyles.)

· Superior crotch point detection

· Self-scan mode (no operator needed), with an optional touch screen inside the scanner booth. With
  the new fully customizable user interface in auto mode, the customer can operate the

  scanner.

· MEP configurator to define desired set of extracted  measurements

· Batch process scans

· Avatar and virtual fashion interface (avatar creation)

· PC table included

· Scanner software license included

· If packaged with ImageTwin offers avatar creation, poses, animation,
size matching, virtual fitting, personalization, and styling advice

· Measurements can be exported through txt to excel and word.



Performance:

· 1 second to capture a high accuracy scan

· Data processing time: <8 seconds (creation avatar, extraction measurements saving files)

· Full 360° body coverage

· Depth resolution of 1 mm based on 880mm cylinder test

· Data density of 75 points per cm²

· Compressed body model with full body fill size of only 380Kb

· Best-in-class body measurement extraction software allowing
1000’s of possible extracted measurements

· Scan volume:  Depth 80 cm x Width 103cm x Height 210cm
(Maximum subject body circumference = 75 inch standard;
larger circumference scanners are available)



Technology:

· Sensors: Infrared depth

· Operation Power requirements: 100-240 V source supported

· CPU configuration: Intel 6 core i7, 16Gb RAM, 1Tb HDD

· Supported formats: obj, txt, ord, rbd, pdf and bin

CAD fit avatars supported: Browzwear, Gerber, Human Solutions, Lectra, Optitex, Telestia, Tukacad

State of the art features

tc2 logo

Call now to find out how:

The TC2-19 3D body scanner is the best in class from the world’s first and largest 3D body
scanner manufacturer serving the fashion, medical, and fitness industries. The most advanced way to answer all body scan and body measurement needs.
